Navigating the Analog Landscape: A Guide to Choosing the Right ADC for the Job ππ§

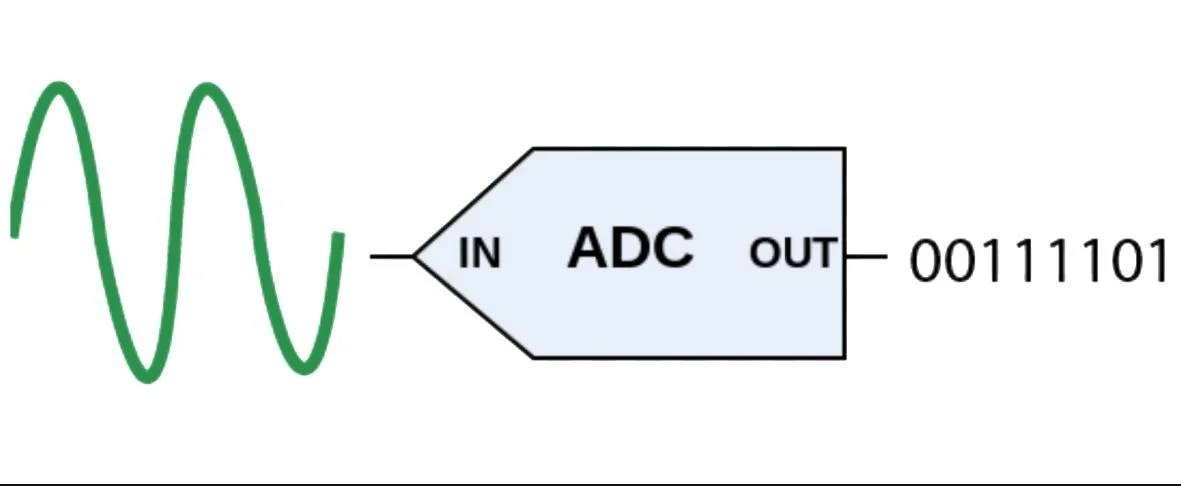

Our world is an endless pool of analog sensations, but our electronics only understand 0s and 1s. Thatβs why choosing and understanding the right Analog-to-Digital Converters (ADCs) is super important! πΌ
β¨ Understanding Your Inputs ππ
Sensors have real mood swings! Some change slowly, like temperature sensors, while others flip faster than a pancake at breakfast π₯ like touchscreens and accelerometers π¨
β¨ SAR, Sigma-Delta, and Pipeline ADCs ππ§
SAR ADCs: The Speedy Gonzales of the ADC world ππ½ββοΈ Need high DC specs and quick conversions? SAR's your star! They're fast, accurate, and user-friendly.
Sigma-Delta ADCs: The Zen Masters π§π½ββοΈ These gurus of precision and power efficiency might not win a sprint, but in a marathon of accuracy, they're your go-to.
Pipeline ADCs: The Flash of ADCs β‘ When speed is the name of the game, and you need to measure at the speed of light, Pipeline ADCs take the crown π But remember, with great speed comes great power... consumption πͺ«πͺ«πͺ«πͺ«
β¨ Picking Your Sidekick π
Sometimes, SAR and Sigma-Delta can both play the hero role, but in other stories, only one can save the day. The Sigma-Delta is like the Swiss Army knife, packed with features and complexity, while SAR is more like a straightforward, sharp dagger β fewer layers on the PCB but equally effective.
β¨ Practical Applications π
ππ½ SAR ADCs are great for general-purpose tasks, e.g. engine control units (ECUs) and handheld medical equipment
ππ½ Sigma-Deltas, with their high precision, are the right pick in high-stakes scenarios, e.g. digital multimeters and electrocardiogram (ECG) machines.
ππ½ Pipeline ADCs are great for charging into high-speed battles with gusto, e.g. Radar Systems and MRI machines
